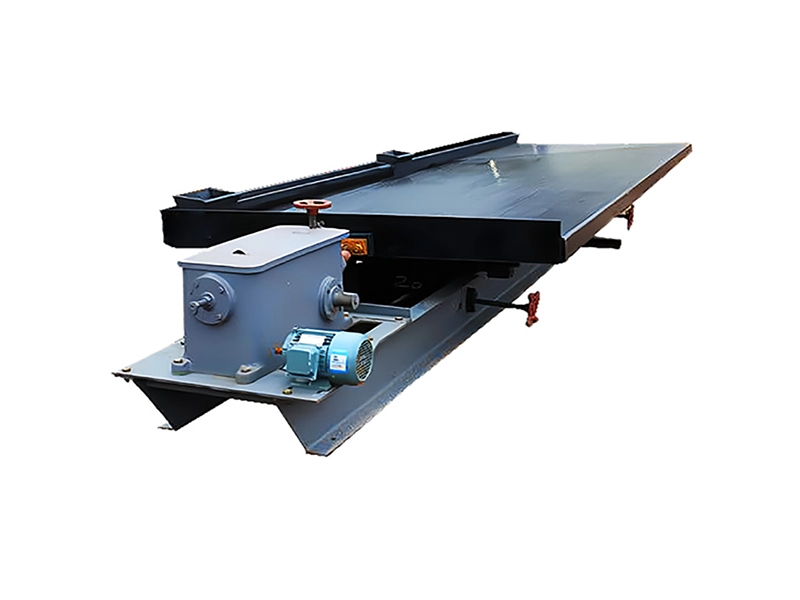

Shaking Table

Capacity:1-25t/h
Material
Widely used in separating gold, chromium, copper, lead, zinc, tungsten, tin, tantalum, niobium, iron, manganese, coal and other mineral separation.

Our shaking table is a gravity separation equipment for processing fine-grained materials including ferrous metals, non-ferrous metals, precious metals and other minerals.

sales@dingbocrusher.net

+8613817259661

Request for Quotation

Free Consulting Online

Overview

Technical Data

Name	Unit	Coarse Sand Shaking Table	Fine Sand Shaking Table	Slime Shaking Table
Table size
Length	mm	4500	4500	4500
Drive end width	mm	1850	1850	1850
Concentrate end width	mm	1530	1530	1530
Maximum feed particle size	mm	2	0.5	0.15
Feed rate	t/d	30-60	15-25	10-20
Feed concentration	%	25-30	20-25	15-25
Stroke	mm	16-22	11-16	8-16
Frequency	F	15-48	48-53	50-57
Washing water flow	t/d	80-150	30-60	10-17
Drive mechanism		Eccentric shaft connecting rod mechanism
Lateral slope	°	2.45-4.5	1.5-3.5	1-2
Longitudinal slope	°	1.4	0.92	…
Table point extinction angle	°	32-42	40	42
Dressing area	M²	7.6	7.6	7.6
Table length ratio		2.6	2.6	2.6
Bed section shape		Rectangle	Sawtooth	Triangle
Motor power	KW	1.1	1.1	1.1
Equipment weight	T	1	1	1
External dimensions	mm	5750x1850x812	5750x1850x812	5750x1850x812

Features

1. It has a high rich ore ratio and high sorting efficiency.
2. The lateral slope adjustment range is extensive (0-10°), the stroke is adjustable, and it is easy to manage.
3. It can maintain smooth operation and stable performance when changing the lateral slope and stroke.
4. Concentrate and waste tailings can be obtained by one separation.
5. Simple structure, no chemical consumption, low power consumption, suitable for various working environments.
6. The feed particle size range is wide, and bed surfaces of different specifications can be prepared.
7. The finished products can be separated by dividing boards according to the needs, and then received separately, and various materials can be obtained.

Working Principle

The longitudinal reciprocating motion of the table surface of the shaking table is realized by the crank-link transmission mechanism. The motor drives the crankshaft to rotate through the belt drive, and the rocker moves up and down accordingly. The bed strips or carved grooves on the bed are longitudinal and nearly perpendicular to the direction of water flow, and eddy currents are formed in the grooves when the water flows horizontally. The combined effect of eddy current and bed surface shaking makes the ore sand layer loose and stratified. The ore is fan-shaped on the bed and discharged along the edge of the bed. The heavy minerals are biased towards the concentrate discharge end of the shaking table, the light minerals are biased towards the tailings side.
