Project Name: Uruguay Earthwork Material Mobile Crushing Processing Project
Customer service: A building materials supplier in Uruguay
Equipment provider: Shanghai Dingbo Heavy Industry Machinery Co., Ltd
Core equipment: Mobile 400 × 600 hammer crushing station
Processing materials: mixed earthwork and gravel
Capacity requirement: 15 tons per hour, discharge particle size ≤ 10mm
Project Location: Central Region of Uruguay

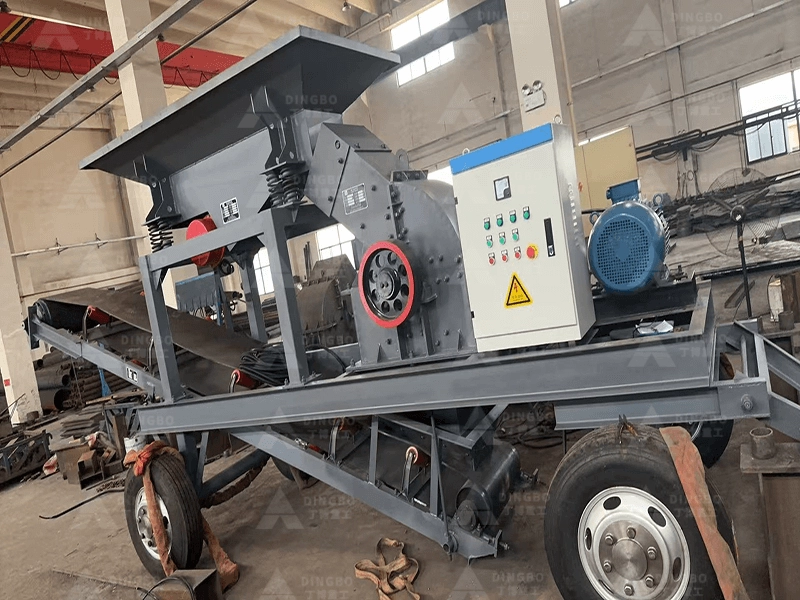

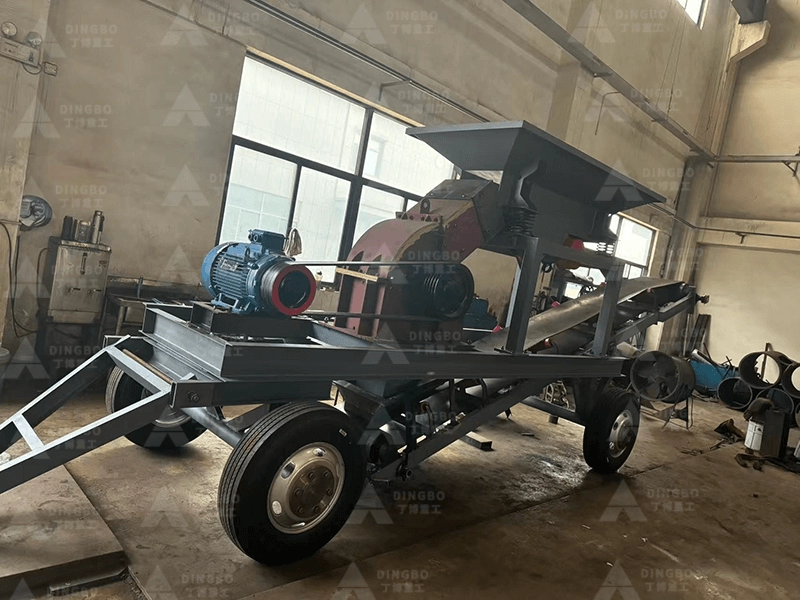

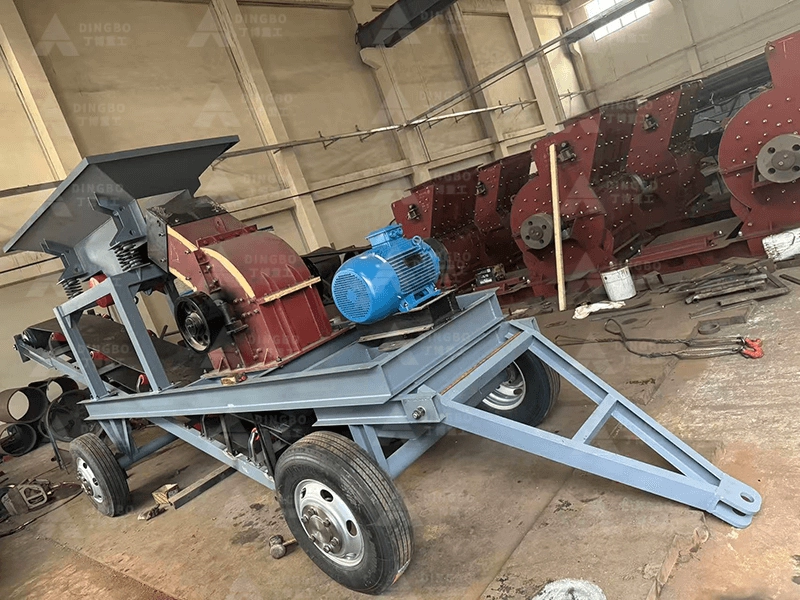

Equipment configuration: DINGBO-46 mobile hammer breaking station
Core parameters:

Host model: PC400 × 600 hammer crusher

Feed particle size: ≤ 250mm

Discharge particle size: ≤ 20mm (adjustable)

Processing capacity: 15-20 tons/hour

Power system: Dual mode diesel generator set/external power supply

Mobile chassis: heavy-duty semi-trailer type, hydraulic support system

Control system: PLC intelligent control, touch screen operation interface

Innovative design features:

Integrated design: feeding, crushing, screening, and conveying systems are highly integrated, reducing on-site installation time

Quick transition capability: After the equipment arrives at the new construction site, it can be deployed and put into production within 2 hours

Intelligent adjustment system: Real time monitoring of discharge particle size, automatic adjustment of the gap between the hammer and sieve plate

Environmentally friendly noise reduction design: enclosed crushing chamber+multi-layer soundproof materials, meeting the requirements of environmentally friendly operations
