 > PRODUCTS > Grinding Mills  >  PC Coarse Powder Hammer Mill

PC Coarse Powder Hammer Mill

Capacity:10-100t/h
Max. Input Size:50mm
Min. Output Size:0-3mm
Application
PC Coarse Powder Hammer Mill is mainly applied to the material processing of metallurgy, building materials, chemical engineering, mining and other industries.

Material
PC Coarse Powder Hammer Mill can grind limestone, calcite, marble, talcum, dolomite, bauxite, barite, petroleum coke, quartz, iron ore, phosphate rock, gypsum, graphite and other non-inflammable and non-explosive mineral materials with Moh’s hardness below 9 and humidity lower than 6%.
sales@dingbocrusher.net
+8613816711123
Request for Quotation
Free Consulting Online

Overview

Technical Data
Model PC4008-75 PC4012-90 PC4012-90L PC4015-132
Rotor Diameter(mm) 750 900 900 1150
Rotor Length(mm) 800 1200 1250 1500
Rotor Speed(r/mm) 800-1000 800-1000 960-1000 550-800
Feed Opening Size(mm) 320X930 400X1200 380x1450 500X1500
Max Feed Size(mm) <50 <50 <50 <100
Product Size(mm) 0-3 0-3 0-3 0-8
Processing Capacity(t/h) 10-30 30-60 50-100 60-100
Motor Power(kw) 55-75 75-90 55-75*2 110-132
Hammer Quantity(piece) 18 32 40 32
Dimensions(mm) 2310 x 1665 x 1610 2840 x 2100 x 2020 3000 x 2600 x 2070 3720 x 2650 x 2540
Features
Wide Applications
Hammer Mill can appear in many areas such as metallurgy, chemical engineering, mining and other industries.

Easy to Maintain
Hammer Mill is compact and has few spare parts, which is beneficial and easy for maintenance and management.

Eco-friendly Production
Hammer Mill adopts closed structure, solving the problems of dust pollution and ash leakage in the workshop.

Excellent End Products
According to users’ requirements, the granularity of end products can get well controlled.

Sufficient Supply of Spare Parts, Worry-free Operation
Dingbo is the manufacturer, we take responsibility for every machine produced by ourselves. We can offer customers technical services about products and original spare parts to ensure the worry-free operation.
Working Principle
In the hammer crusher, the motor drives the rotor to rotate at a high speed through the belt, and on the rotor there are series of hammers. When the materials get into the working area of hammers, the rotating hammers with high rotation speed are crushing them, the crushed products meeting the required size can be discharged by the outlet and become the final products.

Videos & Galllery

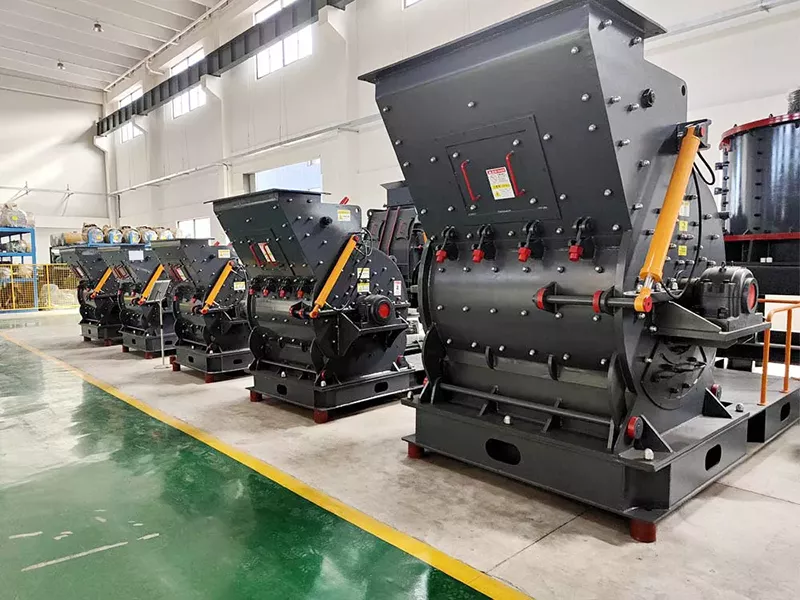

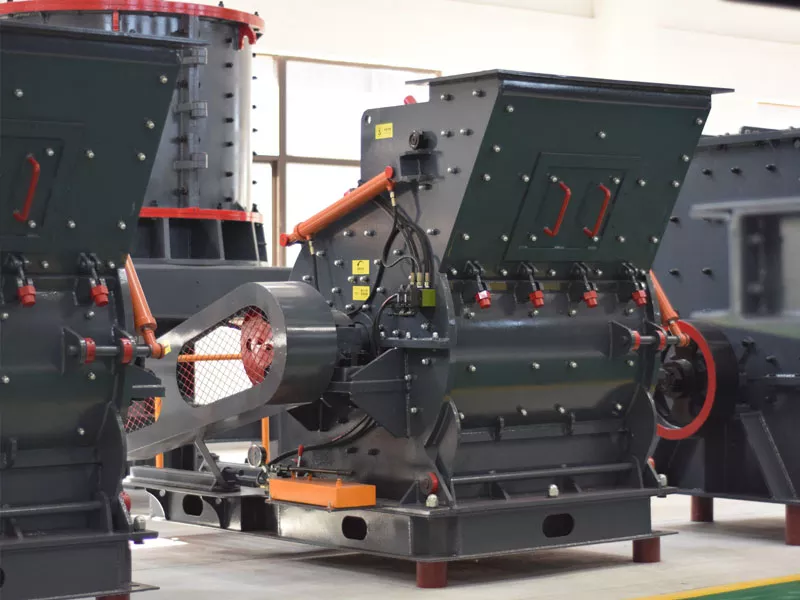

PC Coarse Powder Hammer Mill
PC Coarse Powder Hammer Mill
PC Coarse Powder Hammer Mill
