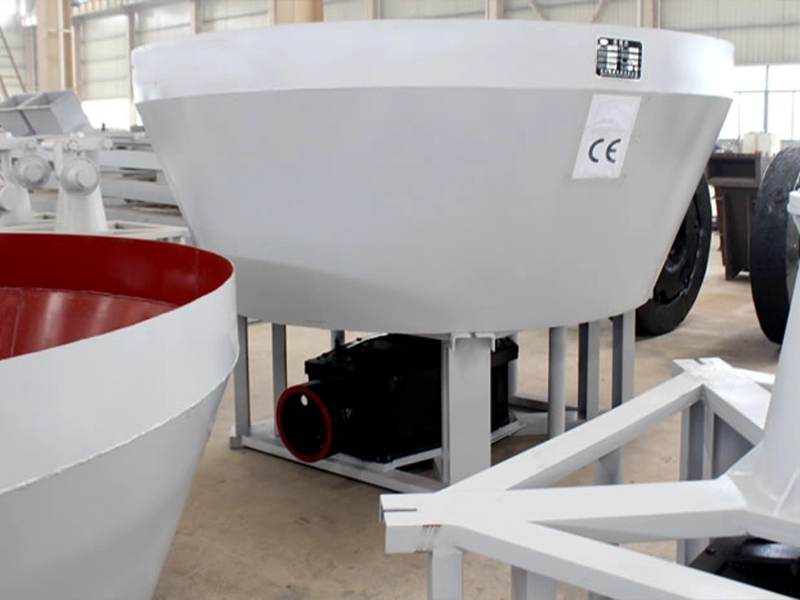

Wet mill

> PRODUCTS > Beneficiation Equipment > Wet mill

Speed:13-25 r/min
Feed size:<25 mm
Application:

It is used for grinding various ferrous metals, non-ferrous metals, non-metallic minerals, as well as grinding, selecting and processing rare and precious metals such as gold and silver.

sales@dingbocrusher.net

+8613816711123

Request for Quotation

Free Consulting Online

Overview

Technical Data

型号	规格(mm)	进料粒度(mm)	转速（r/min)	电机功率(kw)	机重 (t)
1600A	1600×400×200×500±20	<25	20-22	6-30	14.5
1500A	1500×350×200×460±20	<25	20-22	6-22	13.3
1500B	1500×350×150×460±20	<25	20-22	6-22	12.3
1500C	1500×300×150×420±20	<25	20-22	6-22	11.3
1400A	1400×250×150×350±20	<25	16-18	6-18.5	8.5
1400B	1400×250×150×350±20	<25	21-23	6-18.5	8.5
1350A	1350×250×150×350±20	<25	16-18	6-18.5	8
1350B	1350×250×150×350±20	<25	21-23	6-18.5	8
1300A	1300×250×150×350±20	<25	16-18	6-15	7.5
1300B	1300×200×150×350±20	<25	21-23	4-15	7.5
1200A	1200×220×80×270±20	<25	17-19	6-7.5	5.5
1200B	1200×200×80×250±20	<25	23-25	6-7.5	5.5
1100A	1100×200×80×250±20	<25	17-19	6-7.5	5
1100B	1100×180×80×250±20	<25	23-25	4-7.5	5
1000	1000×200×80×250±20	<25	13-15	4-7.5	4.5

Note: Production capacity varies for different materials.

How it works

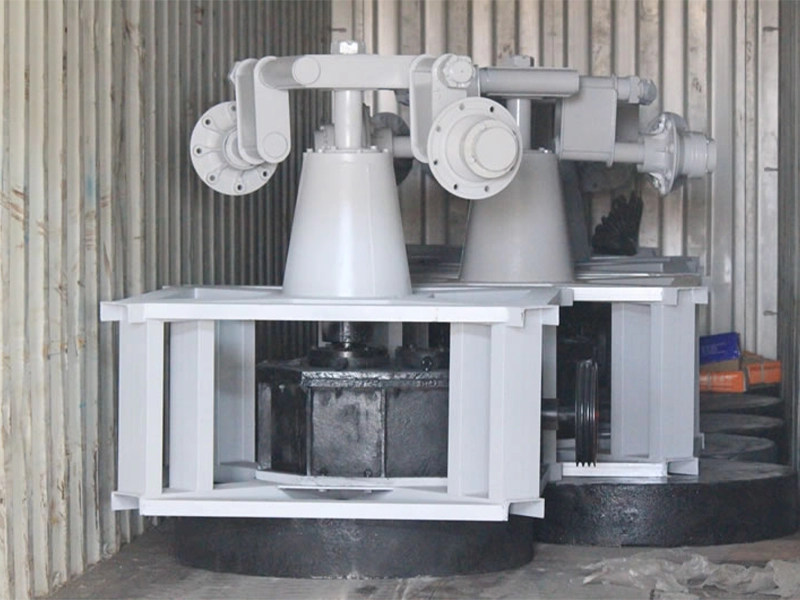

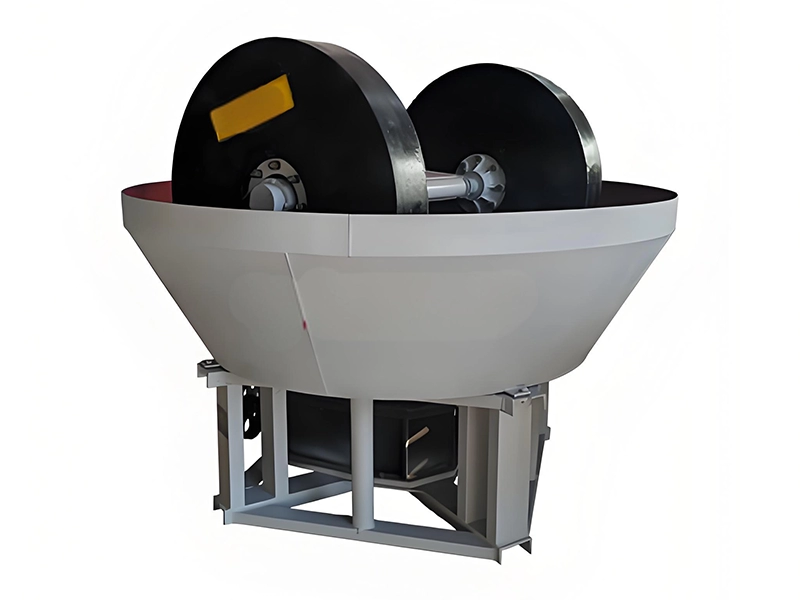

The wet mill adopts the working mode of wheel-type grinding: first, the motor transmits power to the reducer, and under the drive of the reducer, the torque is transmitted to the upper horizontal axis through the large vertical shaft, and then transmitted to the grinding wheel through the tie rods installed at both ends of the horizontal axis, so that the grinding wheel generates driving force and rotates counterclockwise along the horizontal direction of the horizontal axis; when working, the grinding wheel can revolve around the large vertical shaft of the wet mill and rotate around the center axis of the grinding wheel, while the grinding plate is fixed. The added ore material is squeezed by the weight of the grinding wheel in the grinding mill, and the huge friction between the grinding wheel and the grinding plate when the grinding wheel revolves and rotates. After repeated squeezing, kneading, and grinding, it is completely crushed.
