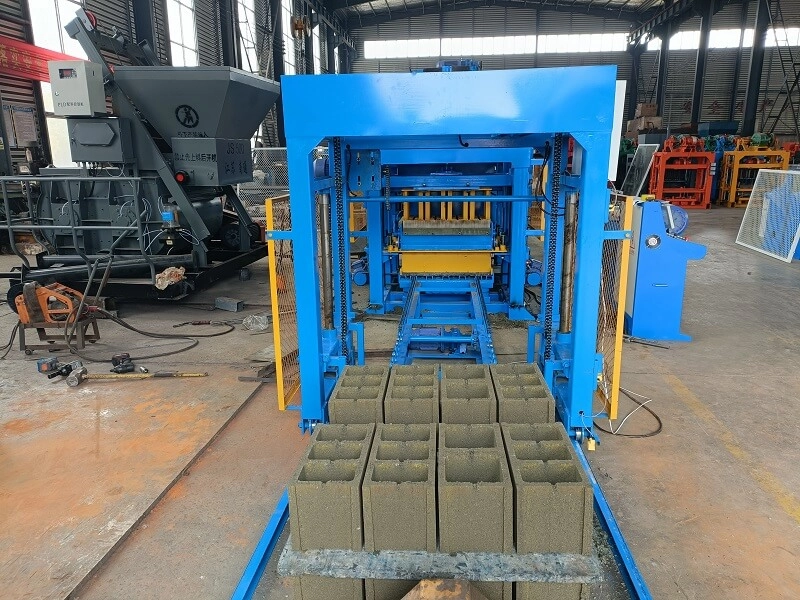

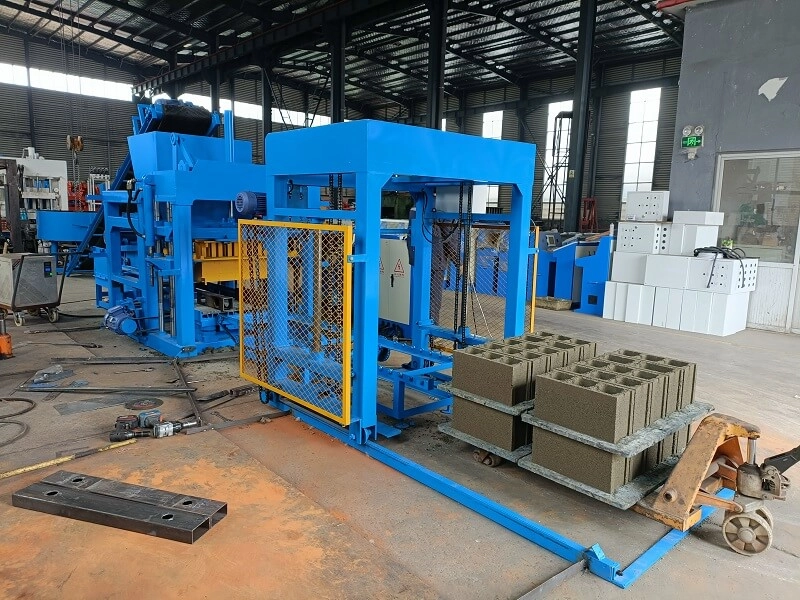

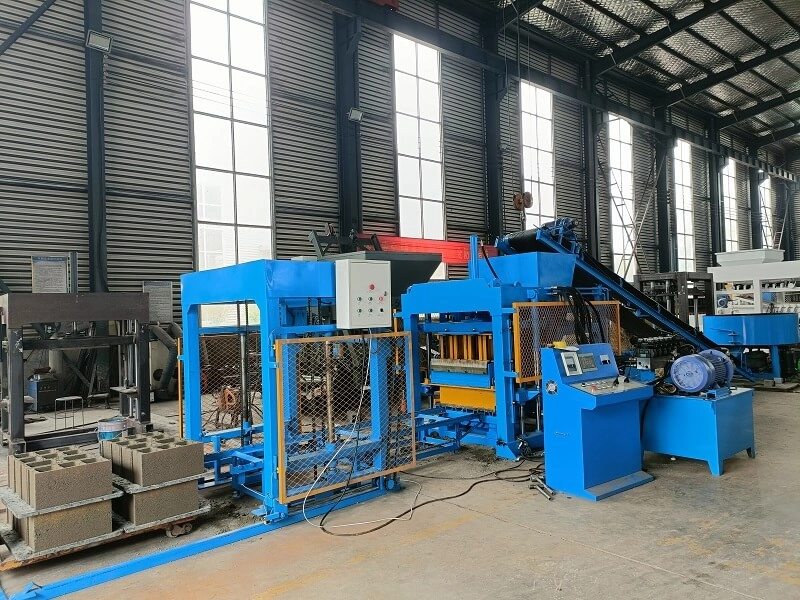

QTJ4-25D Automatic Block Machine

Voltage:220-440v
Power:18.1kw ~28.6kw

Brick material: Crushed stone, sand, cement, dust and coal fly ash, cinder, slag, gangue, gravel, perlite, and other industrial wastes, and so on.

Applied product: Hollow block, solid blocks, paving blocks, Curbstone, Slabs, Hourdis blocks, interlocking blocks and so on.

sales@dingbocrusher.net

+8613816711123

Request for Quotation

Free Consulting Online

Overview

Introduction

QTJ4-25D Automatic Block Machine is a new model developed by our company. For this machine, all the advantages of medium and small sized block machines of similar types have be absorbed. It is cheap in price,easy in operating, and durable in use. This machine is automatic in material feeding, martial distributing, material scraping and carriage plate placing. This machine is equipped with a power:driven decoupling device and a specialized stacker, which can stack 3-5 layers of the blocks. For this machine, there is the specialized carriage cart for block discharging, with which the automatic production with small sized block machine, under the conditions to reduce the labor intensity of workers, can be achieved,and the output of the blocks can be increased substantially. So, it is an ideal alternative of the similar machines. This machine is suitable for the small and medium sized block factories for mass production.

Features

Advantage:

1．Full automatic and output is big.

2．The automatic block machine equip with PLC, easy to operate.

3．The control box is very easy to operate.

4．suitable make hollow solid block ,pavement block,curbstone.

material: cement ,concrete , sand, flyash ,

Ratio of raw material: cement 8%-10%, sand 30%-40%, stone:50%-60%, about cement :sand : stone is 1:4:5.

Hollow block weight:

(400*200*200) :17KG

(400*150*200):13.5KG

(400*100*200):10KG

Technical Data

Voltage		220-440v 3phase 50/60HZ
Power		18.1kw (main machine) 28.6kw(full line)
Forming Cycle		30S
Main Machine Weight		2200kg
Main Machine Dimension		3650x1800x2000mm
Pallet Size		880x550x20mm
Productivity
Size(LxWxH)	Pcs/Mould	Pcs/hour	Pcs/ 8 Hr
400X200X200	4	576	4608
400X150X200	5	720	5760
400X125X200	6	864	6912
400X100X200	7	1008	8064
200X100X60	14	2016	16128
200X160X60	8	1152	9216
225X112.5X60	12	1728	13824
