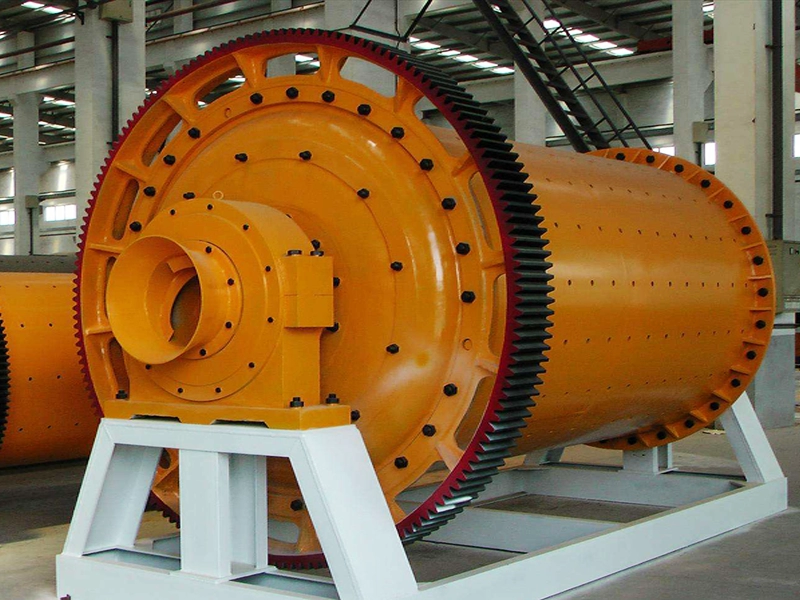

Ball Mill

Capacity:0.65～185t/h
Max.Feed Size:25 mm
Application
This mill is mainly applied to the material processing of metallurgy, building materials, chemical engineering, mining and other industries.

Material
It can grind limestone, calcite, marble, talcum, dolomite, bauxite, barite, petroleum coke, quartz, iron ore, phosphate rock, gypsum, graphite and other non-inflammable and non-explosive mineral materials with Moh’s hardness below 9 and humidity lower than 6%.

sales@dingbocrusher.net

+8613816711123

Request for Quotation

Free Consulting Online

Overview

Technical Data

Model	Cylinder rotary speed（r/min）	Loading ball weight (t)	Input size (mm)	Discharge size (mm)	Capacity (t/h)	Motor power (kw)	Weight (t)
Ф900×1800	39	1.5	≤20	0.075-0.89	0.8-2	18.5	4.6
Ф900×3000	39	2.7	≤20	0.075-0.89	1-4	22	5.6
Ф1200×3000	36	3.5	≤25	0.074-0.4	1.6-5	37	12.8
Ф1200×4500	32	5	≤25	0.074-0.4	1.6-5.8	55	13.8
Ф1500×3000	27	7.5	≤25	0.074-0.4	2-5	75	15.6
Ф1500×5700	28	12	≤25	0.074-0.4	3.5-6	130	24.7
Ф1830×3000	25	11	≤25	0.074-0.4	4-10	130	28
Ф1830×6400	24	21	≤25	0.074-0.4	7-16	210	34
Ф1830×7000	24	23	≤25	0.074-0.4	8-18	245	36
Ф2100×3600	23	19	≤25	0.074-0.4	10-36	210	46
Ф2200×4500	21	27	≤25	0.074-0.4	12-23	280	48.5
Ф2200×6500	21	35	≤25	0.074-0.4	14-26	380	52.8
Ф2200×7000	21	35	≤25	0.074-0.4	15-28	380	54
Ф2200×7500	21	35	≤25	0.074-0.4	15-30	380	56
Ф2400×4500	21	30	≤25	0.074-0.4	18-45	320	65
Ф2400×8000	20	36	≤25	0.074-0.4	20-48	410	81
Ф2700×3600	21	39	≤25	0.074-0.4	19-75	400	83
Ф2700×4000	20	40	≤25	0.074-0.4	20-78	400	85
Ф2700×4500	20	48	≤25	0.074-0.4	22-85	430	89
Ф3200×4500	18	65	≤25	0.074-0.4	29-140	800	137
Ф3200×5400	18	81.6	≤25	0.074-0.4	30-180	800-1000	146
Ф3600×4500	17	88	≤25	0.074-0.4	35-210	1000	190
Ф3600×6000	17	117	≤25	0.074-0.4	38-240	1250-1500	220
Ф3600×8500	17	144	≤25	0.074-0.4	45-260	1800	260

Features

Eco-friendly Production
Ball Mill has a closed structure, so there is less dust spill-over and it is beneficial and friendly to the surrounding environment.

Longer Service Life
The use of wear-resistant materials greatly improves the service life and extend uptime.

Automatic Control
The PLC control system can be selected to improve the automation control level of the grinding mill.

Higher Productivity yet Less Energy Consumption
Users can get higher capacity under the premise of less energy consumption.

Working Principle

Ball mill is the cylindrical swiveling mechanism. It is the outside gearing, double-hopper and lattice ball milling machine. The materials are transferred into the first hopper of the ball milling machine by quill shaft screw of the feeding equipment. This first hopper has the stepped lining board or corrugated liner board, and the steel balls with different specifications. When the cylinder rotates, c entrifugal force will come into being and lift the steel ball to a certain height. Then, the steel balls will fall down, and have strike and grinding impact on the materials. After kibbling in the first hopper, the materials will be transported into the second hopper by single-wall partition. The second hopper has the steel balls inside the scaleboard which will make further grinding to the materials. The powder will be pulled out by the discharging grate plate and accomplish the grinding.
