Copper Ore Processing

DESIGN OUTPUT
According to customer needs

APPLICATION
crushing, grinding, sieving, and flotation separator and dewatering

EQUIPMENTS
Jaw crusher, cone crusher, ball mill, flotation machine, spiral classifier, etc.

Request for Quotation

Free Consulting Online

Copper Ore Processing Plant

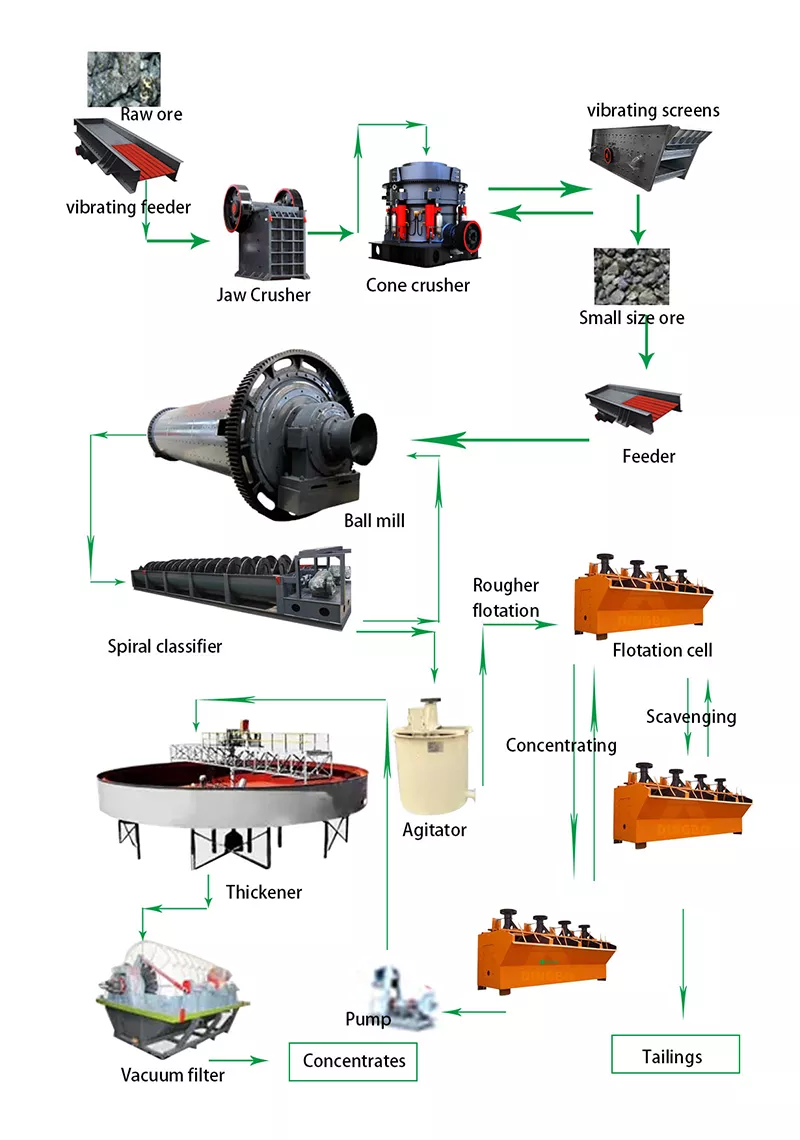

Flow chart of copper ore processing plant

1. Raw Copper Ore Crushing
The copper ore in the quarry is transported to the transit silo, which is then evenly fed to the jaw crusher by the vibrating feeder for primary crushing. According to “more crushing and less grinding”, the crushed cooper ore goes into fine jaw crusher for more crushing. This is prepared for milling process.

2. Copper Ore Grinding
After fine crushed, the copper particles are sent into the ball mill for grinding. For later flotation, a spiral classifier is needed to classify and screen the grinded copper ore. The materials that meet the requirements can enter into the next process for mineral processing, and the copper powder that does not meet the requirements will be sent back to the ball mill for grinding again.

3. Copper Ore Flotation for Concentrating
The qualified copper slurry is fed into the mixing tank, and the corresponding chemical agents are added to make reaction. The slurry goes into flotation cell for processing. The folation process includes rough, seep, concentrate selecting. In froth flotation process, some agent will be used to slecting copper, such as lime to give a basic PH, pine oil to make bubbles, alcohol to strengthen the bubbles, and a collector chemical etc. Through a series of steps the copper ore is concentrated and the waste material that comes out of the bottom of the tanks called tailings.

4. Copper Ore Dehydration
Suspend the copper concentrate slurry in the thickener for fully precipitation and then high-grade copper concentrate powder can be obtained after dehydrating and drying though the dryer.

Copper Ore Beneficiation Process

Copper ore beneficiation is a process to extract copper from raw ores. Raw copper ore can be divided into three categories: copper oxide ore (azurite, cuprite and malachite), copper sulfide ore (chalcopyrite, bornite and chalcocite) and natural copper. Copper ore beneficiation process is commonly including gravity separation, flotation process, and magnetic separation.

Gravity separation: The gravity separation method sorts minerals according to their relative density (usually called specific gravity). Currently, gravity separation is only used to select copper ores with coarser inlays, and is especially suitable for copper oxide ores with higher density.
Flotation separation: Copper flotation process is based on the difference in the physical and chemical properties of the mineral surface, processed by the flotation agent, and the mineral is selectively attached to the bubbles to achieve the purpose of separation. The beneficiation of non-ferrous metal ores, such as copper sulfide ore, lead, zinc, sulfur, molybdenum, etc. is mainly treated by flotation process; some ferrous metals, rare metals, and some non-metallic ores, such as graphite ore, apatite, etc. are also used for the copper flotation process.
The composition of copper ore is generally more complex, associated with more minerals, it can not use a simple method of leaching separation. It has priority flotation and mixed flotation. Preferential flotation is to float the useful minerals and then separate two or more of them. Mixed flotation is the flotation of a variety of useful minerals at the same time then through other ways to separate again.

RECOMMEND EQUIPMENT

PE Jaw Crusher

Capacity	5-800t/h
Max. Feeding Size	210-1020mm

HPD Hydraulic Cone Crusher

Capacity	50-1200t/h
Max Feeding Size	6-38mm

Ball Mill

Capacity	0.65～185t/h
Max.Feed Size	25 mm

ZSW Vibrating Feeder

Capacity	96-1500t/h
Max. Input Size	450-1400mm
